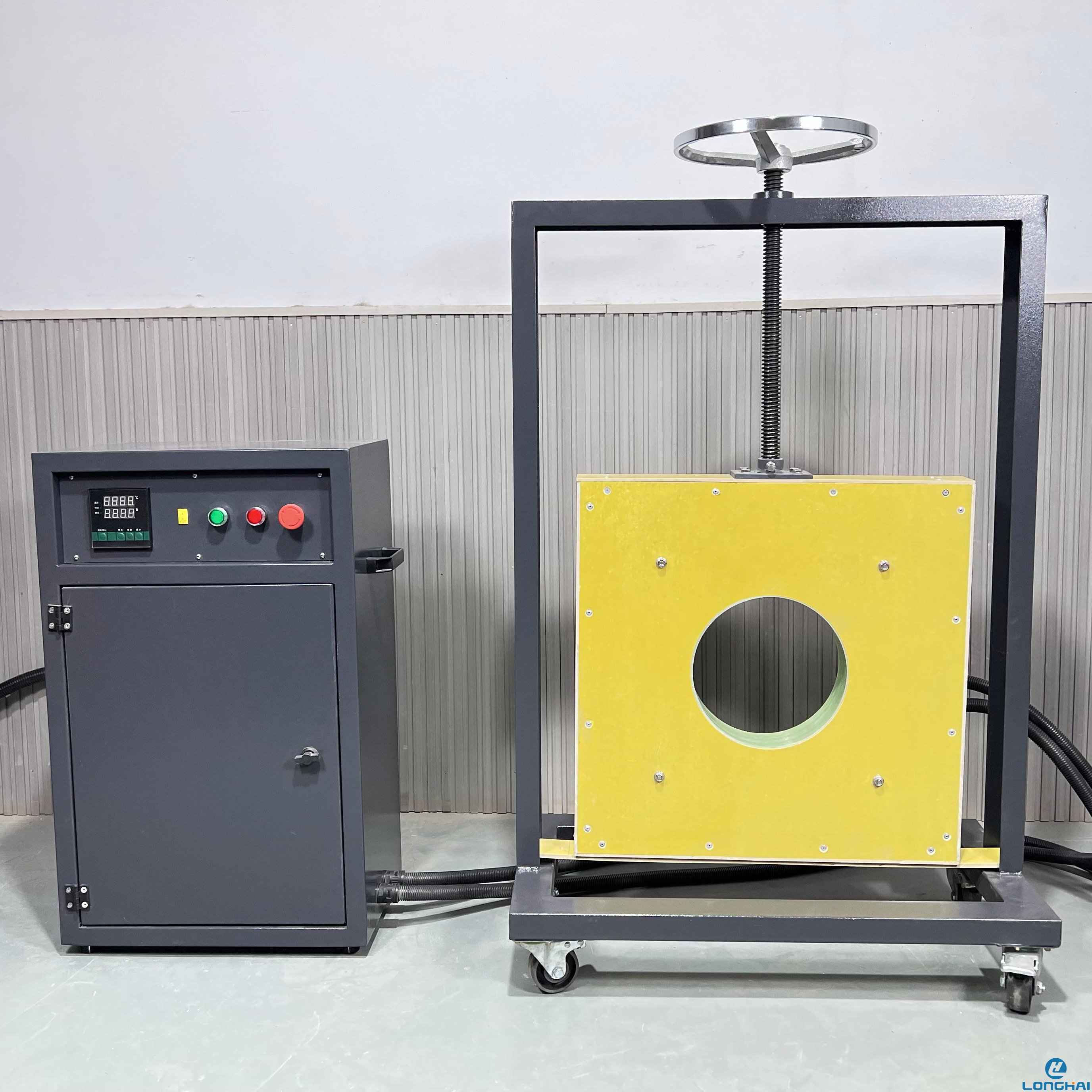

Induction Heating: Quickly removes cylindrical roller bearings with minimal effort.
-
60KVA Power: Provides sufficient heat for efficient bearing disassembly.
-
Wide Temperature Range: Heats up to 300°C for versatile use.
-
Customized Support: Offers personalized solutions for OEM orders. Industrial Quality: Built to withstand heavy industrial demands.
ABOUT THE SUPPLIERChangzhou Longhai Welding Equipment Co.LTD is one of the largest and powerful manufacturer for Induction bearing heater .With more than 20 years working experience ,we currently have more than ONE hundred kinds of products, including bearing heaters, motor housing heaters, gear heaters, ring gear heaters, piston heaters, connecting rod small head heaters, pot cover heaters, bearing disassemblers, and medium to high frequency induction heaters.
These products are widely used in metallurgy, mining, textile, papermaking, petrochemicals, chemical industry, power, mining and other fields,etc. Even we have some products similar as S.K Series including below two types : PRODUCT HIGHLIGHTS Advantages :
1)Our product uses pure copper coils that can be continuously heated, avoiding production delays caused by machine issues. It can be used with peace of mind and has been inspected by customers .
2) The induction heater consists of a dry cooling and self cooling power frequency induction heating device and a control device. The control box is manufactured according to the IEC4390076 standard, and the host is insulated at level B.
3) The skeleton is made of glass fiber epoxy board, and the wire is made of double glass fiber copper flat wire. The stability assessment should be conducted by powering on for 5 minutes at 2000V, and the insulation resistance should be greater than 2M Ω at this time.
4) Considering that the temperature rise of the heated workpiece far exceeds the allowable temperature rise of Class B insulation, other insulation measures were adopted in addition to anti thermal radiation technology during the design.
5) The host casing is made of 304 stainless steel plate, which is less affected by magnetic fields.
6) The H-type induction heater is composed of three sets of wire packages combined with capacitor compensation, which is equivalent to the working efficiency of three ordinary induction heaters. 7) Quality Warrante around 18 months
