Induction Bearing Heater
|

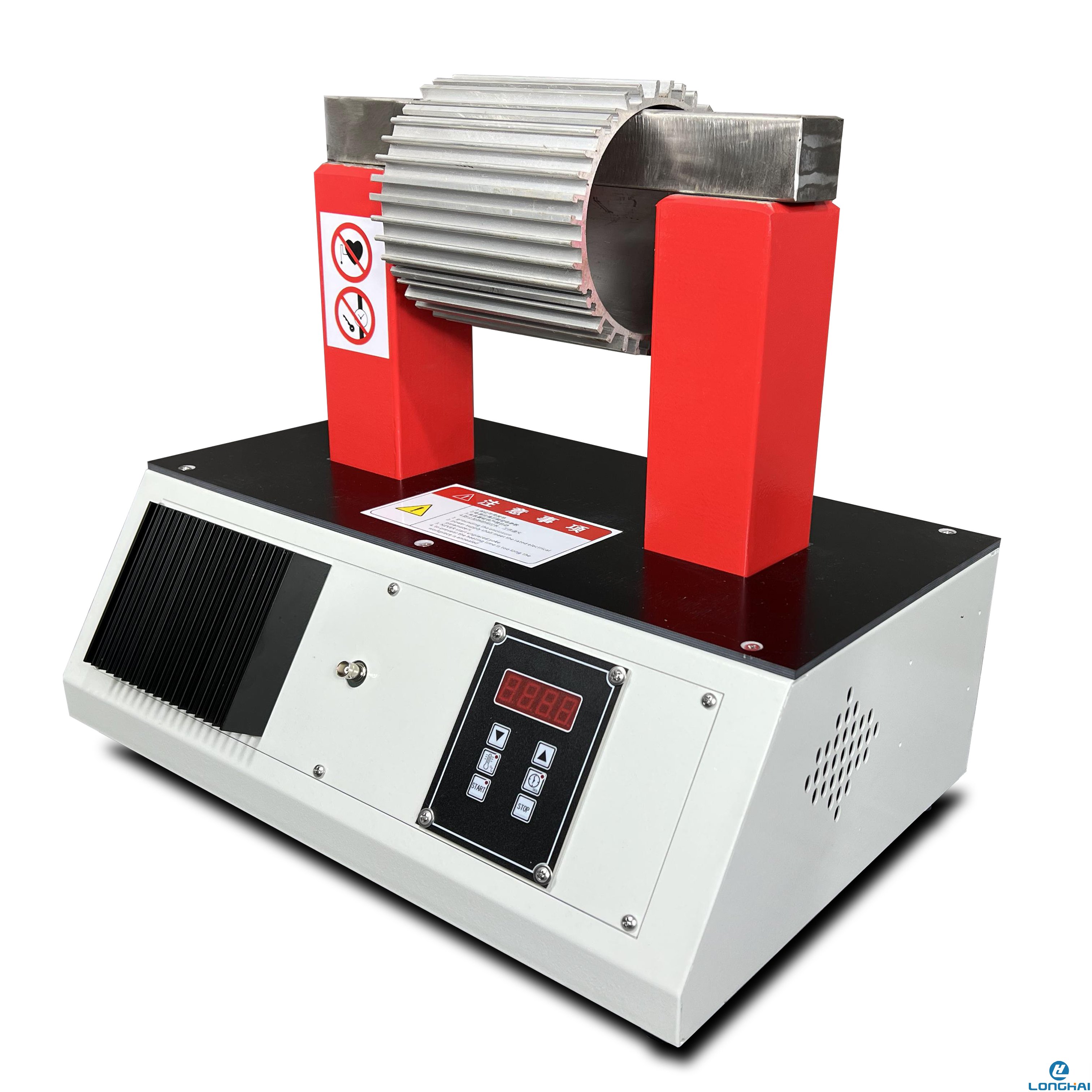

LHM-100T 380V 20KW Induction Bearing HeaterProduct No.:
Standard：
Size Range：
Raw Material：
Online Inquiry
Email Us
|
| Product Description: | |
|
Specification

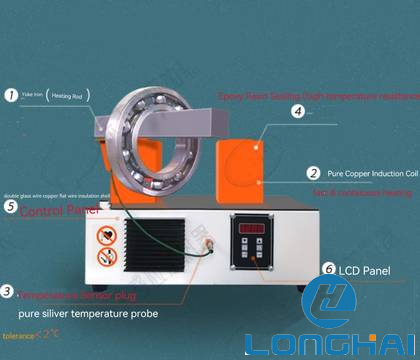

OTHER PRODUCTS: STUD WELDING ,WELDING STUD ,CERAMIC FERRULE ,ETC Advantages ： 1）Our product uses pure copper coils that can be continuously heated, avoiding production delays caused by machine issues. It can be used with peace of mind and has been inspected by customers. 2) The induction heater consists of a dry cooling and self cooling power frequency induction heating device and a control device. The control box is manufactured according to the IEC4390076 standard, and the host is insulated at level B. 3) The skeleton is made of glass fiber epoxy board, and the wire is made of double glass fiber copper flat wire. The stability assessment should be conducted by powering on for 5 minutes at 2000V, and the insulation resistance should be greater than 2M Ω at this time. 4) Considering that the temperature rise of the heated workpiece far exceeds the allowable temperature rise of Class B insulation, other insulation measures were adopted in addition to anti thermal radiation technology during the design. 5) The host casing is made of 304 stainless steel plate, which is less affected by magnetic fields. 6) The H-type induction heater is composed of three sets of wire packages combined with capacitor compensation, which is equivalent to the working efficiency of three ordinary induction heaters. 7) Quality Warrante around 18 months ,which is longer than normal company ..Our products exported to lots country ,Including USA ,England ,Australia ,Japan ,Korea ,etc So for any inquiry，just do not hesitate to contact with us ~   | |
|
|
|
|
