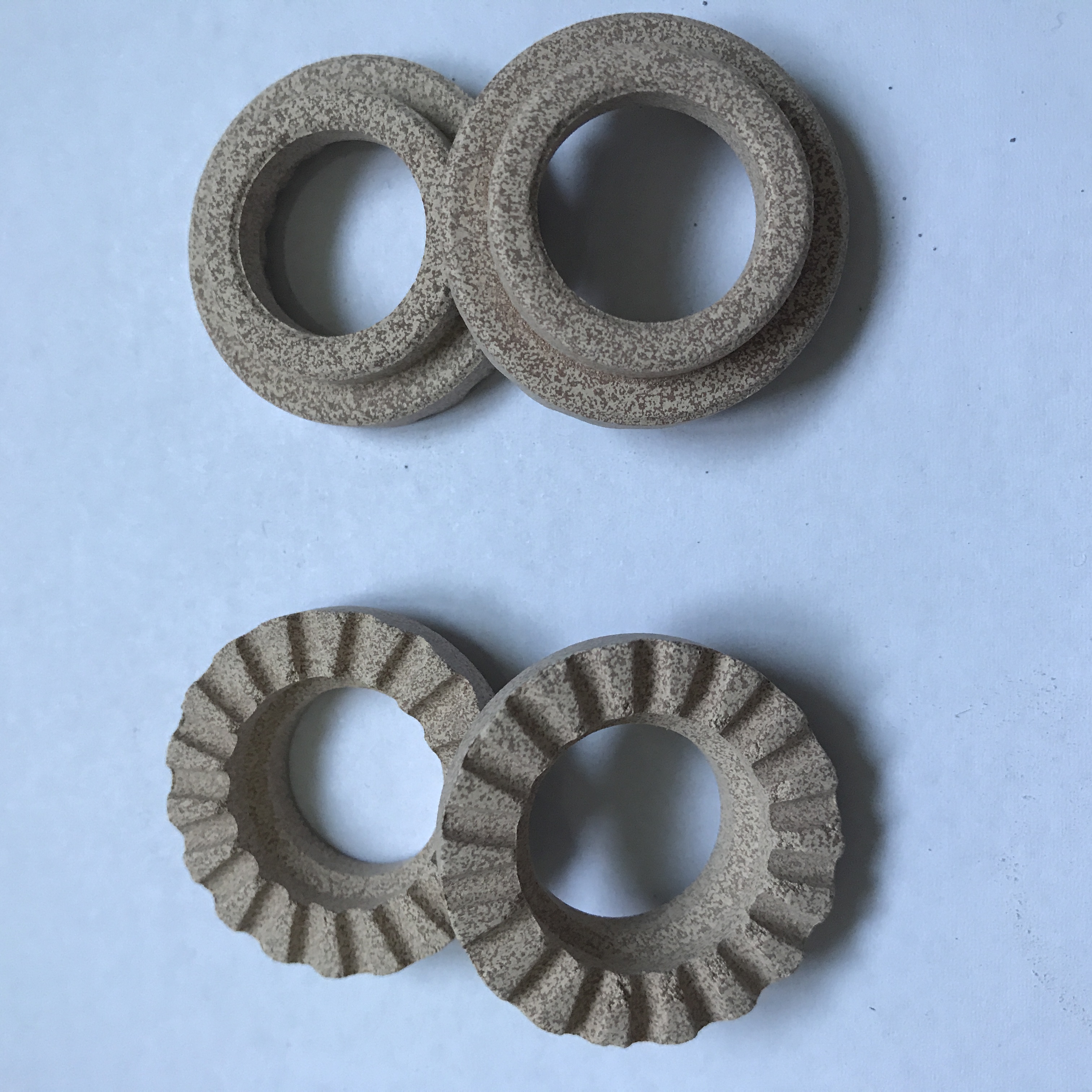

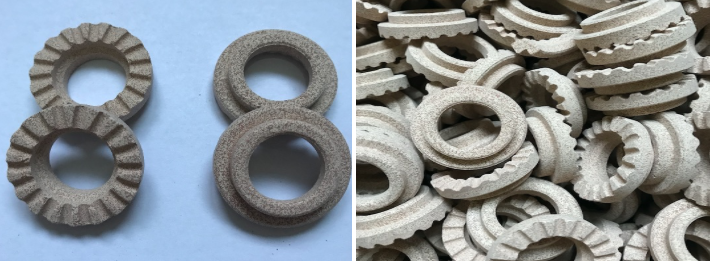

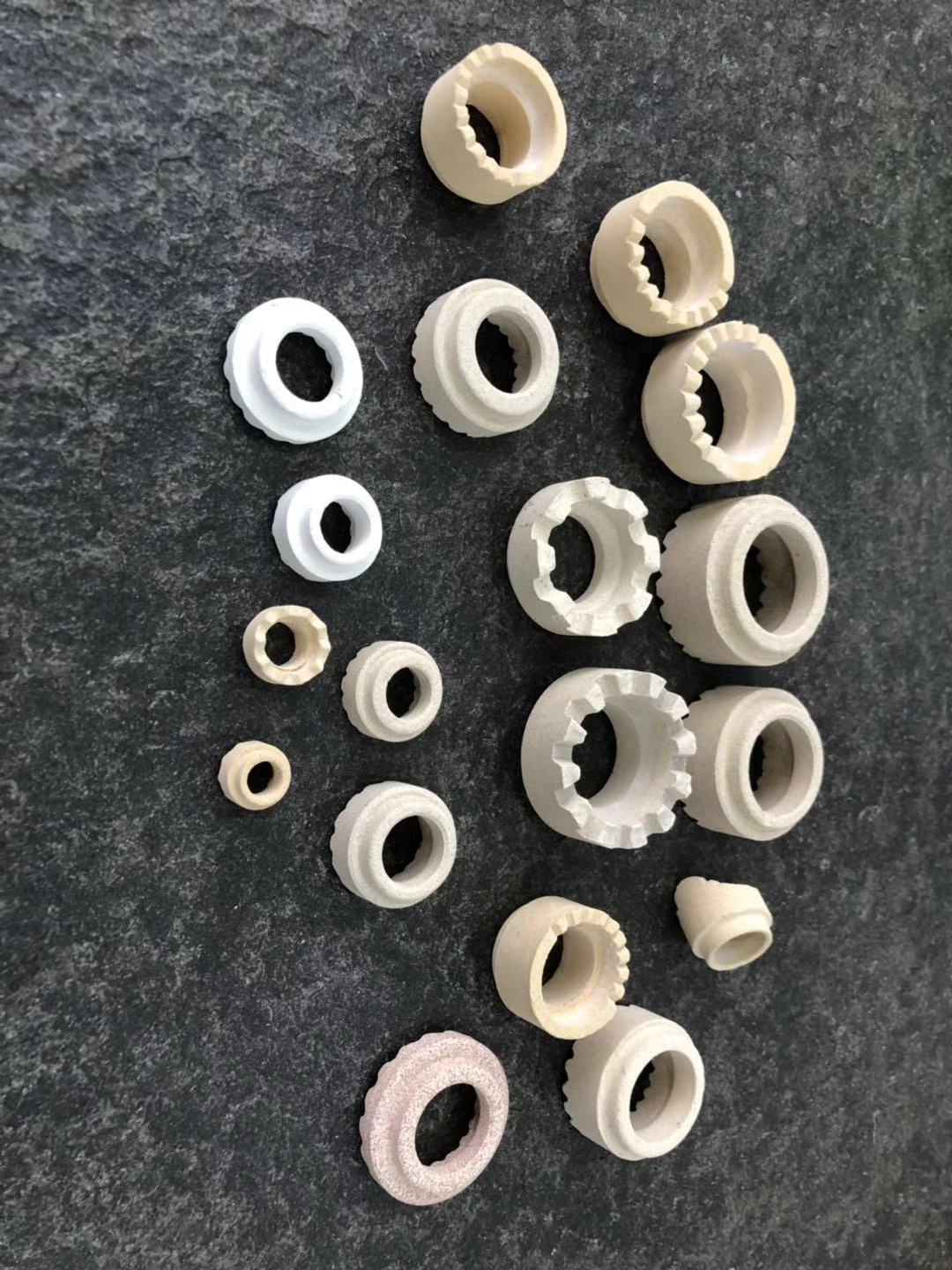

Ceramic Ferrule

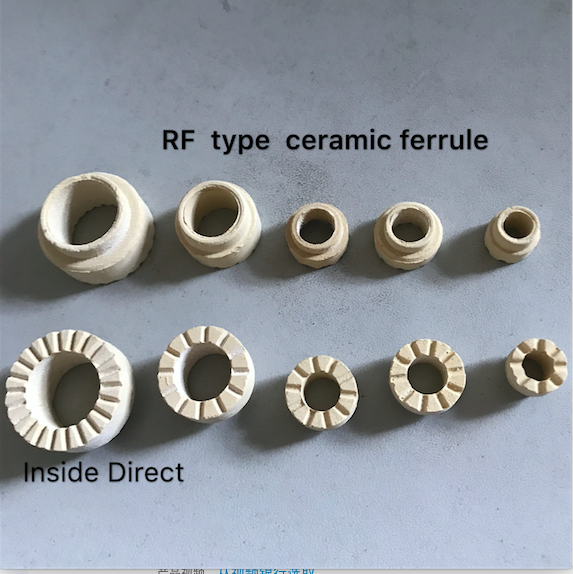

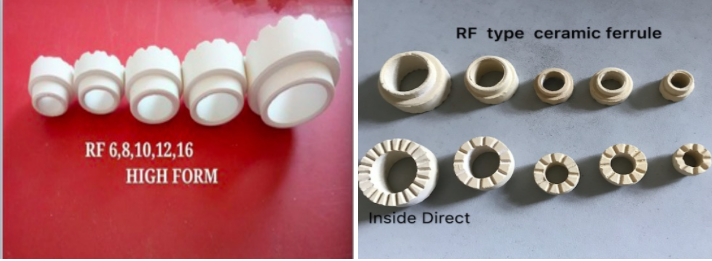

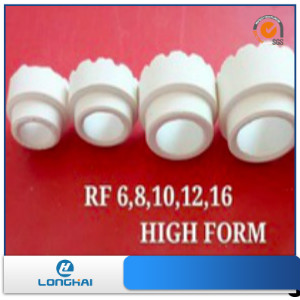

RF Type

Product No.:Cearmic Ferrule RF

Standard：Ø4-25mm

Size Range：25mm

Raw Material：Ceramic ferrule

Online Inquiry Email Us

Product Description:

Our RF ceramic ferrules are made by Standard GBT10433-2002 or ISO 13918: 2008 Type UF, for shear connector welded to steel member in PA position.

Our Advantages :

1. Good concentricity and consistency.

2. Excellent wear with heat resistance.

3. High strength, endurability, anti-aging performance.

4. Extremely precise designs or customized products.

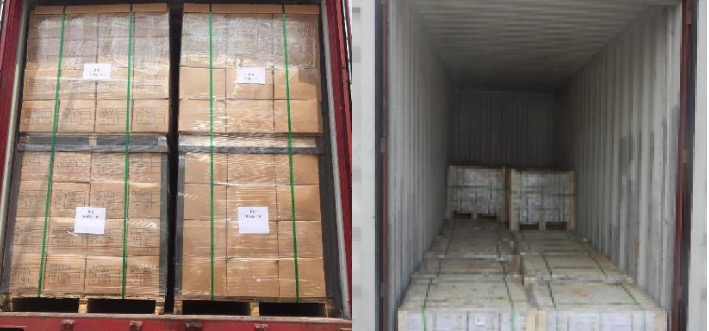

5.Packing in carton ,inside by water-proof plastic bag ,outside by Standard Ex-port Pallets or Polywood Cases .

Form	D7(+0.4)	d8±1	d9±1	h2≈
RF6	6.2	9.5	12.2	10
RF8	8.2	12	15.3	9
RF10	10.2	15	18.5	11.5
RF12	12.2	17	20	13
RF16	16.3	20.5/26.2a	26.5/32.5a	15.3/8.8a
RF20	20.3	26.2/28.5a	32	22/9a
RF24	24.3	26.2/30.4b	33/36b	25/13a

Dimensions in millimetres .
